TapSparesUK - Howdens Lamona TAP3630 Valve Cartridge Set

Howdens Lamona TAP3630 Valve Cartridge Set 3547R - (Post 2015, 28 spline)

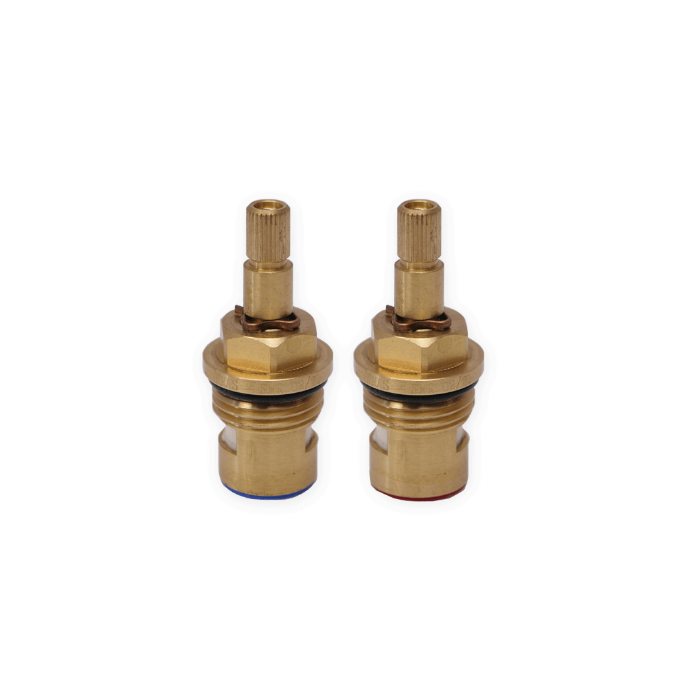

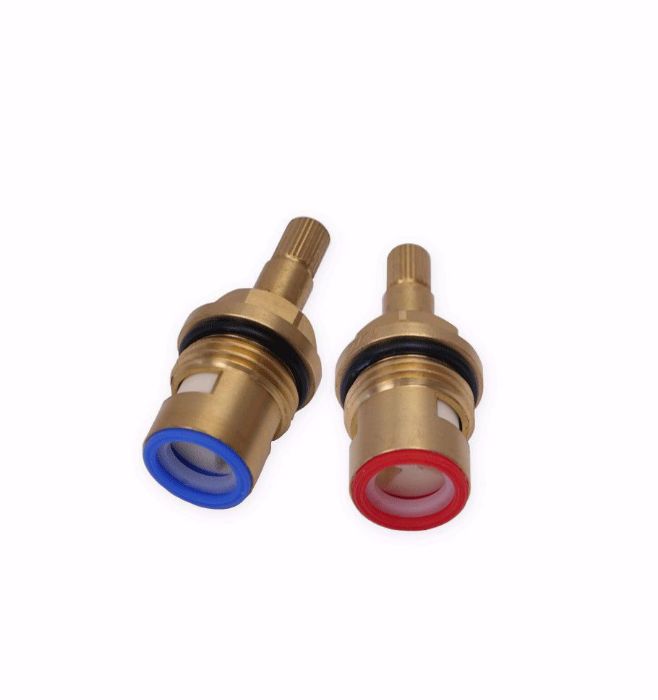

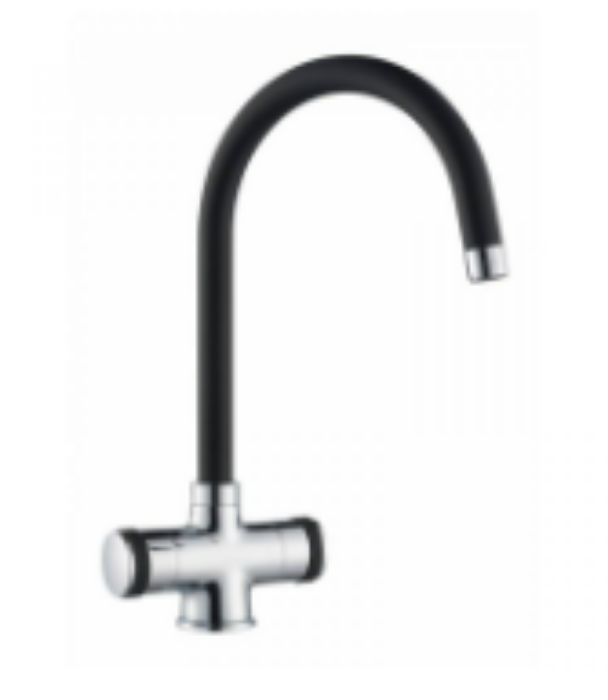

These are Genuine Howdens replacement valve cartridges (3547R), suitable for the Lamona TAP3630 Black & Chrome Tap where the existing valves match the specifications below.

Howdens Lamona TAP3630 Black & Chrome Taps have been supplied with different valve types over the years.

These valves are suitable for post-2015 taps with 28-spline valves. Pre-2015 taps with 28-spline valves may require 1427R / SP3561 valves, while taps with 20-spline valves require 3549R replacements.

Please check your tap’s installation guide or remove your existing valve and compare it with the measurements below before ordering.

3547R Valve Specifications

Overall height: 53 mm
Nut height: 6 mm
Thread diameter: 21 mm
Number of splines: 28
Spline height: 11 mm

Here is a link to all the parts we stock for the Howdens Lamona TAP3630 Black Chrome Tap.

Take care when removing your old valve

When removing an old tap valve, it is common for the brass retaining ring (also known as the bush) to come out attached to the valve. Although it may seem stuck, the bush can usually be removed and reused.

If the bush is difficult to separate from the old valve, apply a small amount of penetrating oil or WD-40 around the joint and leave it for a few minutes to work. Carefully loosen the bush, taking care not to damage the threads.

Once removed, screw the bush back into the tap body and tighten securely. You can then fit your replacement tap valve as normal.

If the bush is damaged or cannot be removed, a replacement bush may be required. One bush is required per valve.

Please see the image below (for illustration only; your valve and bush may differ slightly).

How To Replace Your Tap Valve

Replacing a tap valve is usually a quick and simple repair. Always turn off the water supply before starting.

1. Remove the handle
The handle is usually secured by a grub screw underneath the lever or a screw hidden behind the hot/cold indicator on the side of the lever. Remove the screw and gently pull the handle off.

2. Remove the valve cover / shroud if applicable
If your tap has a valve cover or shroud, unscrew and remove it.

3. Remove the old valve
Using a suitable spanner, turn the valve anticlockwise and remove it. If it is very tight, use a descaling solution, white vinegar, lemon juice or WD-40 to help loosen it. Allow it time to work before trying again. If a brass bush is fitted and comes out with the old valve, don't worry. It can usually be separated from the valve. If not, replacement bushes are available from us. Take care not to damage the threads.

4. Fit the new valve
Before fitting, compare the new valve with the old one to check the length, thread, splines and opening direction. Screw the new valve in by hand first to avoid cross-threading, then tighten with a suitable spanner. Do not overtighten.

5. Refit the handle and test
With the valve fully closed, refit the handle in its normal off position, making sure it is correctly aligned. Secure the handle and slowly turn the water back on. Check that the tap operates smoothly and the dripping has stopped.
