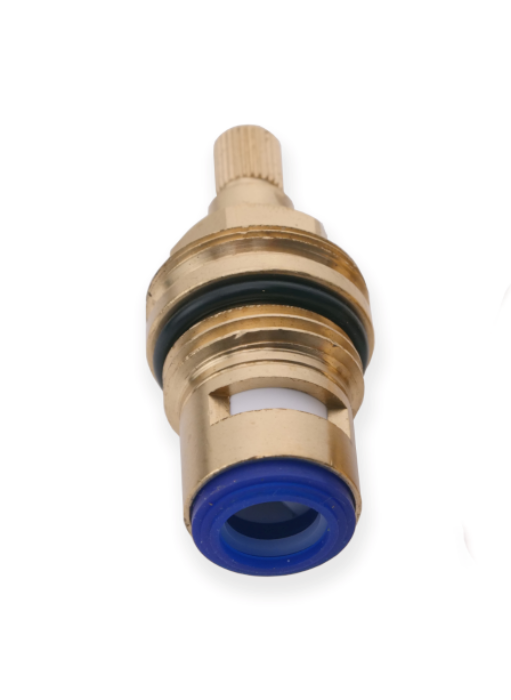

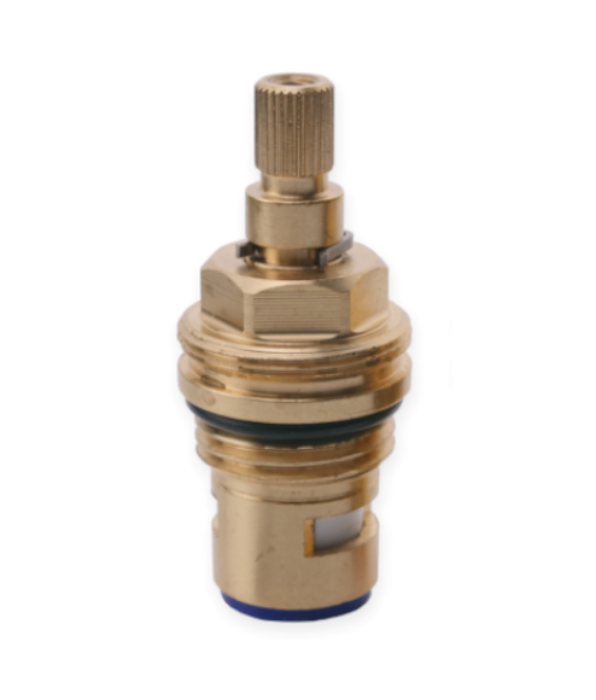

Howdens Lamona Cold Valve Cartridge - Pre 2015

The Howdens Lamona Black & Chrome tap has differing valves. If you have a pre 2015 tap and your current valve has 28 splines, these are likely to be the valves you require. Post 2015 taps with 28 spline valves may require SP3547 valves. Please check your installation guide or remove your current valve and check if you require these valves. Please get in touch and share images of your current valve if you'd like us to help. If your current valve has 20 splines, unfortunately we don't currently stock replacements.

1427R/SP3561 - Overall Height: 53mm, Nut Height: 8mm, Diameter at thread: 21mm, Splines: 28, Height of splines: 10mm

PLEASE NOTE: Take care when removing your old valve - it is common for a chunky brass ring (the bush) to come out at the same time. If this happens and you cannot separate the two, you will need to also replace the brass bush. Please see the image below. (this picture is generic and may not match your valve exactly)
