Franke Olympus Cold Valve cartridge

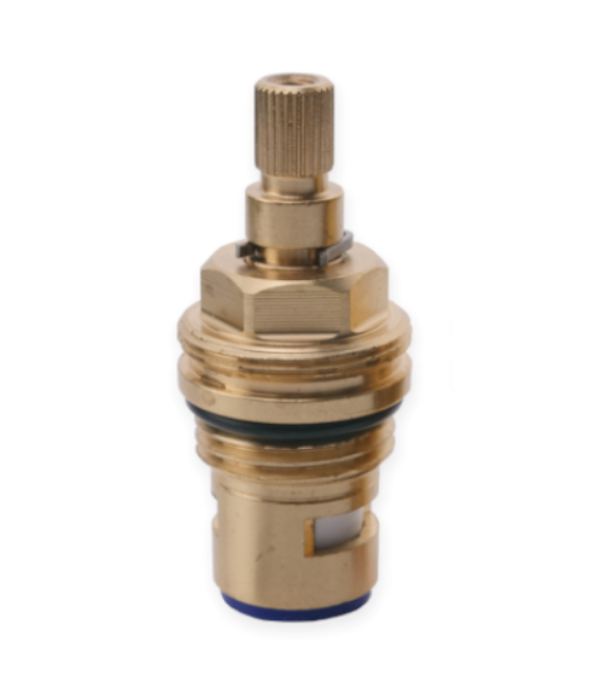

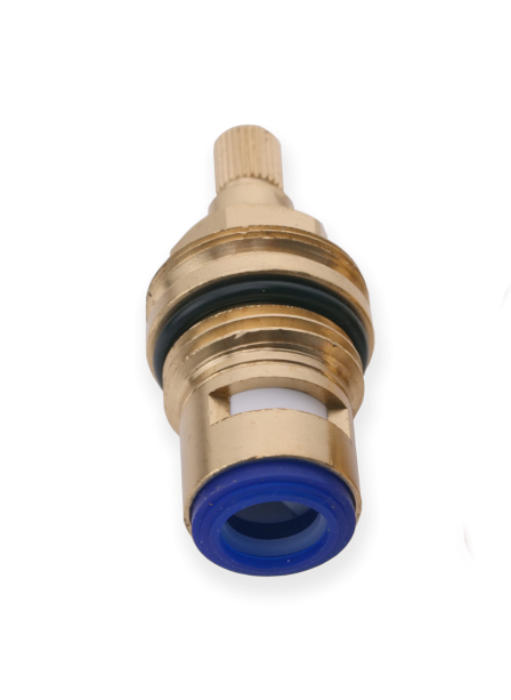

Franke Olympus Cold Valve Cartridge 3561R

Fully compatible with the Franke Olympus Tap, TapSparesUK replacement valves/cartridges are available individually or as a pair. Designed to restore smooth operation, they help resolve common issues such as leaks and drips from the top of the spout or around the tap handle.

This replacement valve has also been listed under the following part numbers and references:

1427R, 2552R, 3561R, SP3561, 4276R, 133.0438.152, 133.0069.364, 133.0194.089, 115.0051.544.

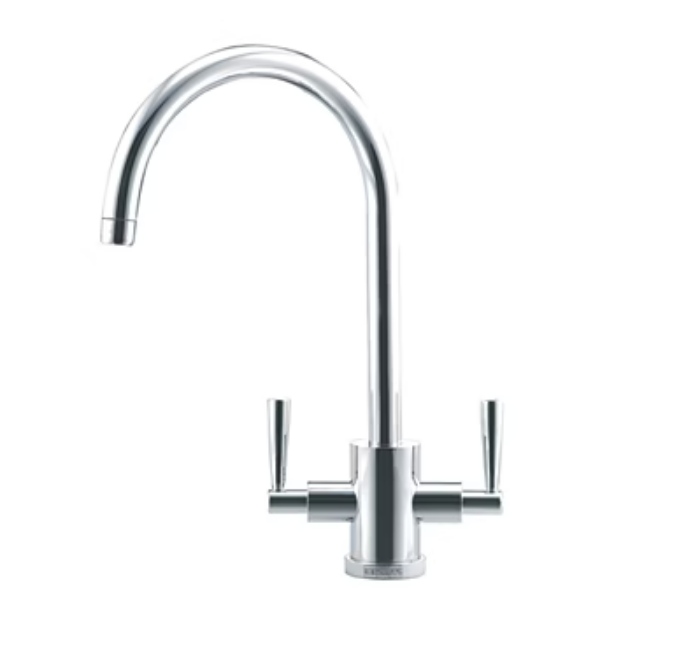

Our replacement valves are fully compatible with the Franke Olympus tap.

⚠️ Important Compatibility Notice

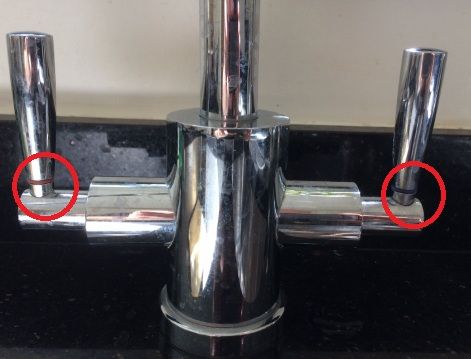

These valves are not compatible with early-generation Olympus G taps featuring red and blue rings at the base of the lever handles.

We do not stock the correct replacement valves for these models. Please check your tap carefully before ordering.

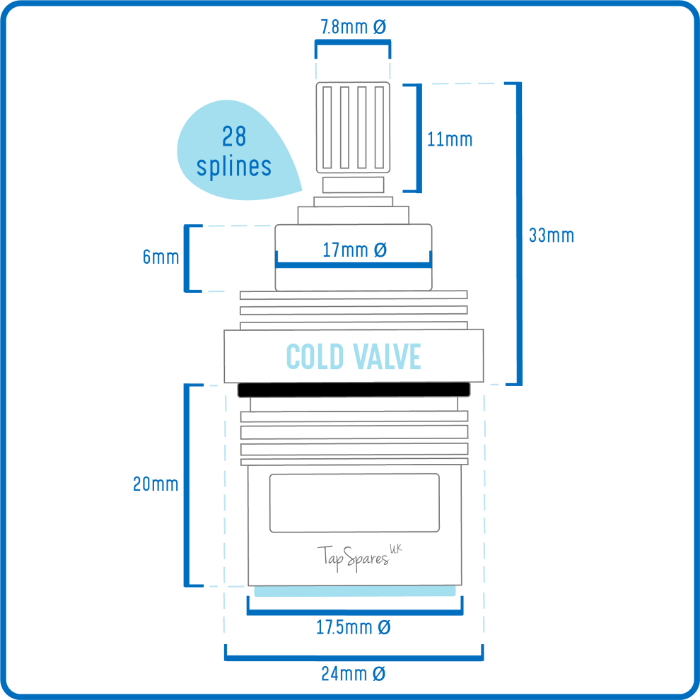

Tap Valve Measurements

Nut Height: 6mm
Splines: 28
Overall Height: 53mm
Thread diameter: 21mm

Take care when removing your old valve

When removing an old tap valve, it is common for the brass retaining ring (also known as the bush) to come out attached to the valve. Although it may seem stuck, the bush can usually be removed and reused.

If the bush is difficult to separate from the old valve, apply a small amount of penetrating oil or WD-40 around the joint and leave it for a few minutes to work. Carefully loosen the bush, taking care not to damage the threads.

Once removed, screw the bush back into the tap body and tighten securely. You can then fit your replacement tap valve as normal.

If the bush is damaged or cannot be removed, a replacement bush may be required. One bush is required per valve.

Please see the image below (for illustration only; your valve may differ slightly).

Illustration of the brass bush

How to change a Franke Olympus Tap Valve

Turn off the water supply to the tap.
Using a 2 mm Allen key, remove the grub screw from the handle assembly.
Carefully pull the lever away from the shroud.
Unscrew the shroud from the main body of the tap.
Using a 17 mm spanner or adjustable spanner, unscrew and remove the old valve. If the valve has been fitted for some time, it may require some initial force to loosen.
Select the correct replacement valve. The valves can be identified by the notches on the hexagonal drive. A valve with notches is the hot valve.
Screw the correct valve into the correct position and tighten firmly.
Before refitting the handle, make sure the valves are in the fully closed position. Align the handle as close to vertical as possible and secure it in place. If the handle is not correctly aligned, remove it and reposition it by rotating it one or two notches before refitting. Repeat this adjustment until the handle sits correctly.
Refit the handle and tighten the grub screw carefully to secure it in position. Do not overtighten.
Turn the water supply back on and check the tap for leaks.

Olympus FAQs

My Franke Olympus tap is leaking from the base of the spout. What do I need to replace?

If your Franke Olympus tap is leaking where the spout joins the main body of the tap, this is usually caused by worn or damaged spout O-rings/seals rather than a faulty valve or cartridge.

The spout can be easily removed to fit new o-rings, and the spout refitted to restore a watertight seal. If the spout has a pinhole or is damaged, a replacement spout will be required.

How do I remove the Franke Olympus tap spout and replace the O-rings?

To remove the spout, use a 2.5 mm Allen key to loosen the grub screw at the back of the tap body. Once the screw is removed, carefully pull the spout upwards and out of the tap body.

The O-rings inside the spout can then be replaced before refitting the spout. You can watch our How To video here for a step-by-step guide.

My Franke Olympus tap is dripping from the top of the spout or around the handles. What is the problem?

If your Franke Olympus tap is dripping from the top of the spout or leaking around the handles when the tap is turned off, this is usually caused by a worn or damaged valve/cartridge.

Replacing the valve will normally restore the tap to full working order and stop the leak.

How do I remove the Olympus tap lever handle?

Using a 2 mm Allen key, remove the grub screw from the handle assembly. This is located underneath the handle.

Slide the lever off the tap.

Unscrew the valve cover/shroud and remove.

You can now unscrew the old valve using a 17 mm or adjustable spanner.

What tools do I need to remove my Franke Olympus tap valve?

You will need a 17 mm or adjustable spanner to unscrew your old valve.

You can purchase one from us if needed:

TapSparesUK 17mm Spanner

A chunky brass ring (the bush) has come out with my old valve. What should I do?

This is common when removing older valves. The brass bush can often be separated from the old valve and reused.

If you need a replacement bush, you can purchase one here:

Franke Olympus Bush

One bush is required per valve. We sell them individually, as a pair, or as a set with the valve pair.

Alternatively, you can try separating your existing bush from the old valve:

Turn off the water supply before removing any tap components.
Spray a small amount of penetrating oil or WD-40 where the valve screws into the bush and leave it for a few minutes to work. If it has been fitted for many years, a second application may be required.
Hold the bush firmly using a soft-jawed vice or adjustable spanner. Wrapping the bush in a cloth first will help protect the finish.
Carefully turn the valve anti-clockwise to unscrew it from the bush. If it does not move immediately, do not force it. Applying more WD-40 and allowing additional time is usually better than using excessive force.
Once the valve and bush are separated, clean the bush thoroughly. Remove any dirt, limescale, or old residue from the thread and check that it has not been damaged.
Refit the bush into the tap body first, ensuring it is fully tightened, then install the replacement valve.

I can't remove the bush from my old valve. What should I do?

If the bush cannot be separated from the old valve, it may need replacing.

You can purchase a replacement bush here:

Franke Olympus Bush

One bush is required per valve. We sell them individually, as a pair, or as a set with the valve pair.

Here is a link to all the spare parts we stock for the Franke Olympus Tap
